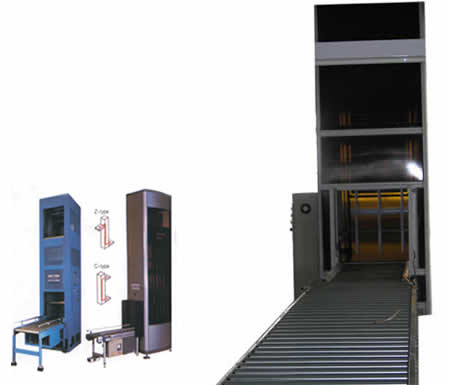

Vertical Conveyors



The vertical conveyor mainly has two types:continuous and reciprocating.The continuous type will continuously convey the pallet ,it is suitable for point to point simple transportation.The reciprocating type is just like an elevator,which can realize multi layers and multi ports conveying.


1.Reaize vertical transportation

Standard Specification(in mm) :

Capacity 50-250kgs per pallet
Vertical height 4-20 m
Speed 26m/min(continuous),50m/min(reciprocating)
Drive 0.75kw AC 380V
