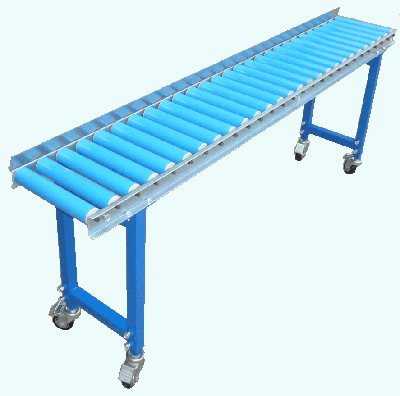

Roller Conveyors
Description:
The gravity conveyors are widely used for indoor light and medium duty cargo transportation,easy packing processing.Obviously it is flexible,mobile and omni-direction.
Characteristic:
1.Economic and practical,high performance cost ratio.
2.Modular design,easy assembling
3.Multi roller types:suitable for multi situation

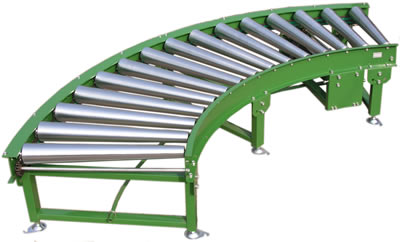

2.Single Chain Driven Roller Conveyor
Description:
The single chain driven roller conveyors are widely used for indoor rigid flat bottom medium duty cargo transportation.The max loading capacity is normally 100kgs per meter.
Characteristic:
1.Economic and practical,high performance cost ratio.
2.Modular design,easy assembling
3.Reliable running,both forward and reverse transport are applicable
4.Accumulating function is applicable
Standard Specification(in mm,kg,m/min):
| Drive Chain | Roller Diameter | Roller Width | Roller Pitch | Frame Dimension | Length | Width | Height | Speed |
08B/08A /10A |
ø38/ø50/ ø60/ø76/ø89 |
100-1500 | 75/100/ 150/200 |
120*30*3/135*30*3 /150*35*4 |
1000-15000 | Roller+50 | 450-2000 | max30 |

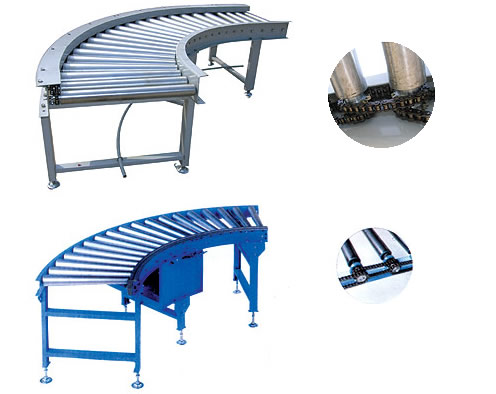

3.Double Chain Driven Roller Conveyor
Description:
The double chain driven roller conveyors are widely used for indoor rigid flat bottom medium and heavy duty cargo transportation.The max loading capacity is normally 450kgs per meter.
Characteristic:
1.Large loading capacity
2.Modular design,easy assembling
3.Smooth and reliable running
4.Accumulating function is applicable
Standard Specification(in mm,kg,m/min):
| Drive Chain | Roller Diameter | Roller Width | Roller Pitch | Frame Dimension | Length | Width | Height | Speed |
08B/08A /10A |
ø38/ø50/ ø60/ø76/ø89 |
100-1500 | 75/100/ 150/200 |
90*30*3/120*30*3/ 150*40*4/180*50*5 |
1000-9000 | Roller+190 | 450-2000 | max25 |
