Gravity Rollers (A Series)
 |
 |
|

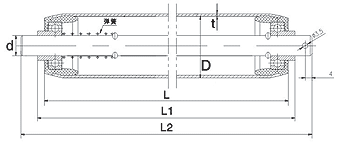

| Model:ARP Series | ||
| Structure:Use precise bearing and steel bearing chock | ||
| Characteristic:Quiet,Durable and High speed adaptable | ||
| Purpose:Suitable for light,medium duty roller conveyors and high speed running machines | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy / Engineering Plastic | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | L | L1 |
| ø25 | ø8 | 1.0 | 50-800 | L+8 |
| ø38 | ø12 | 1.5 | 50-1200 | L+8 |
| ø50 | ø12 | 1.5 | 50-1500 | L+11 |
| ø60 | ø12 | 2.0 | 50-1500 | L+10 |
 |
 |
|

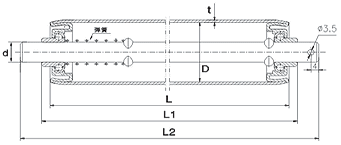

| Model:ARS Series | ||
| Structure:Use precise bearing and steel bearing chock | ||
| Characteristic:Large capacity,low noise,durable | ||
| Purpose:Suitable for medium ,heavy duty roller conveyors | ||
| Material:Carbon Steel / Stainless Steel / Aluminum Alloy | ||
| Surface:Galvanized / Chromed / Gel casting / Plastic Coated | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | L | L1 | L2 |
| ø38 | ø12 | 1.5 | 50-1500 | L+8 | L+30 |
| ø42 | ø12 | 1.5 | 50-1500 | L+8 | L+30 |
| ø50 | ø12 | 1.5/2.0 | 50-1500 | L+8 | L+30 |
| ø57 | ø12 | 1.5 | 50-1500 | L+8 | L+30 |
| ø60 | ø12 | 1.5/2.0 | 50-1500 | L+8 | L+30 |
| ø60 | ø15 | 2.0/3.0 | 50-1500 | L+8 | L+30 |
| ø76 | ø20 | 3.0/4.0 | 50-2000 | L+8 | L+40 |
| ø89 | ø20 | 3.0/4.0 | 50-2000 | L+8 | L+40 |
| ø108 | ø20 | 4.0 | 50-2000 | L+8 | L+40 |
 |
 |
|

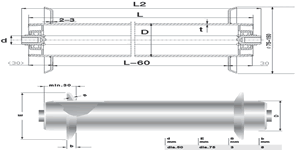

| Model:ARP(G)/ARS(G) Series | ||
| Structure:Use precise bearing and steel bearing chock | ||
| Characteristic:Large capacity,low noise,drop proof | ||
| Purpose:Suitable for medium ,heavy duty roller conveyors | ||
| Material:Carbon Steel / Stainless Steel | ||
| Surface:Galvanized / Gel casting | ||
| Standard Specification(in mm): | ||
| Tube Diameter | Shaft diameter | Thickness (t) | L | L1 |
| ø50 | ø12 | 1.5/2.0 | 100-1500 | N/A |
| ø60 | ø12/ø15 | 2.0/3.0 | 100-1500 | N/A |
| ø76 | ø20 | 3.0/4.0 | 100-2000 | N/A |
| ø89 | ø20 | 3.0/4.0 | 100-2000 | N/A |
 |
 |
|

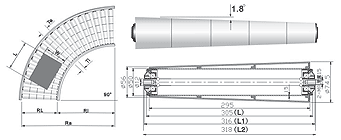

| Model:ARPT Series | ||
| Structure:Use precise bearing and engineering plastic sleeve | ||
| Characteristic: wearproof,wetproof,durable | ||
| Purpose:Suitable for medium duty curved roller conveyors | ||
| Standard Specification(in mm): | ||
| Small End | Taper | Big End | |||||
| L=200 | L=300 | L=400 | L=500 | L=600 | L=700 | ||
| ø38 | 3.6° | 50.6 | 56.9 | 63.2 | 69.5 | 75.8 | 82.1 |
| ø50 | 56 | 68.9 | 75.2 | 81.5 | 84.8 | 94.1 | |
 |
 |
|

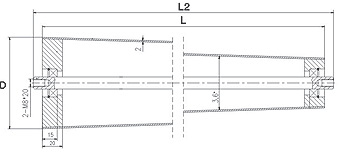

| Model:ARST Series | ||
| Structure:Use precise bearing and tapered steel tube | ||
| Characteristic: Large capacity,low noise,durable | ||
| Purpose:Suitable for gravity curved roller conveyors | ||
| Standard Specification(in mm): | ||
| Small End | Taper | Big End | |||||
| L=200 | L=300 | L=400 | L=500 | L=600 | L=700 | ||
| ø50 | 3.6° | 62.6 | 68.9 | 75.2 | 81.5 | 87.8 | 94.1 |
