Live Spool Roller Conveyors

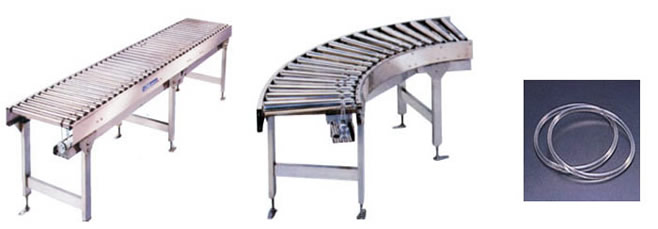

Photo:

Description:

The live spool roller conveyor is a clean,reliable,low noise and high speed design.The operation noise is normally 35% lower than other type's.Meanwhile,the max speed can be 60m/min.The live spool conveyor is widely used as diffluent and confluent part of logistic system.

Characteristic:

1.Clean and beauty structure

2.High speed and reliable

3.Low noise and quite operation

Standard Specification(in mm) :

Type	3815	5015
Drive Method	Chain(08B/08A/10A)	Chain(08B/08A/10A)
Roller Size	ø38(Tube Dia)xT1.5xø12(shaft dia)	ø50(Tube Dia)xT1.5xø12(shaft dia)
Roller Width	100-1000	100-1000
Roller Pitch	50/75/100/150/200	75/100/150/200
Frame Size	120x30x3	120x30x3
Sprocket	08B14T	08B14T
Length	1000-10000	1000-10000
Height	450-1000	450-1000
Moter	0.1/0.2/0.4/0.75/1.5	0.1/0.2/0.4/0.75/1.5
Supply	AC 380V 3phases	AC 380V 3phases
